Public IP Pass-through (DMZ Transparent Mode)
Public IP Pass-through (DMZ Transparent Mode)

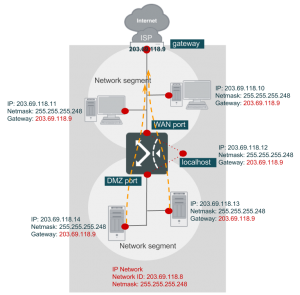

As an intelligent router, FortiWAN is generally supposed to forwards packets between networks connected to its network ports according to the specified IP routing table, and any IP broadcast packet, including the ARP request, would not be forwarded. So that each of the connected network segments should be a separate layer 3 IP network. However, this can be different for particular WAN link deployments – routing-mode WAN links and multiple-static -IP bridge-mode WAN links. FortiWAN’s Public IP Pass-through logically combines a WAN port and a DMZ port to one localhost. By performing Proxy ARP (for IPv4) and ND Proxy (for IPv6) on the combined localhost, the connected layer 1 segments are combined to a common layer 2 segment. An IP network can be deployed and operate correctly over the two network segments. Public IP Pass-through minimizes the adaptation to current network topology and requires no changes to configurations on existing servers while introducing FortiWAN into the network. It is flexible to deploy some of the multiple public IPs that ISP provides for the WAN link to DMZ for external-facing services. Note that Public IP Pass-through will be activated automatically if a WAN link is configured as routing mode and deployed with “subnet in WAN and DMZ”, or configured as multiple-static -IP bridge mode with IP addresses being deployed in both WAN and DMZ segments. The following diagram shows how an IP network 220.127.116.11/255.225.255.248 is deployed over a WAN port and a DMZ port.
l WAN types: Routing mode and Bridge mode l Scenarios to deploy subnets l Configuring your WAN
Scenarios to deploy subnets
No matter an available subnet (routing mode) or an IP range of a shared subnet you obtain from ISP, you will need making a plan how to deploy the multiple IP addresses.
To deploy the available subnet that ISP provides (routing mode) on FortiWAN, there are four different scenarios (be called subnet types as well) for your options:
|Subnet in WAN||:||Deploy the subnet in WAN.|
|Subnet in DMZ||:||Deploy the subnet in DMZ.|
|Subnet in WAN and DMZ||:||Deploy the subnet in both WAN and DMZ. FortiWAN’s Public IP Passthrough function makes the two Ethernet segments in WAN and in DMZ one IP subnetwork (See “Public IP Pass-through”).|
|Subnet on Localhost||:||Deploy the whole subnet on localhost.|
For cases of obtaining an IP range (bridge mode), the IP addresses could be allocated to:
IP(s) on Localhost : Allocate the IP addresses on localhost.
IP(s) in WAN : Allocate the IP addresses in WAN.
IP(s) in DMZ : Allocate the IP addresses in DMZ.
Static Routing Subnet
If there are subnets, which are called static routing subnets, connected to a basic subnet, it’s necessary to configure the static routing for external accessing to the static routing subnets.
- WAN types: Routing mode and Bridge mode
- Public IP Pass-through
- Configuring your WAN
- LAN Private Subnet
VLAN and port mapping
Customers can assign every physical port (except the HA port) to be a WAN port, LAN port or a DMZ port on demand, which is called Port Mapping as well. The WAN ports, LAN ports and DMZ ports are actually physical ports on FortiWAN, they are just not at the fixed positions. The port mapping will be reflected in related configurations. FortiWAN supports IEEE 802.1Q (also known as VLAN Tagging), but it does not support Cisco’s ISL. Every physical port (except the HA port) can be divided into several VLAN with a VLAN switch, and those virtual ports can be mapped to WAN port, LAN port or DMZ port as well.
Configurations for VLAN and Port Mapping
IPv6/IPv4 Dual Stack
FortiWAN supports deployment of IPv6/IPv4 Dual Stack in [Routing Mode], [Bridge Mode: One Static IP], [Bridge Mode: Multiple Static IP] and [Bridge Mode: PPPoE]. For configuration of IPv6/IPv4 Dual Stack, please select appropriate WAN Type (See “WAN types: Routing mode and Bridge mode”) for the WAN link according to the
IPv4 you are provided by ISP as mentioned previously, and configure for IPv4 and IPv6 at the WAN link together.
Except a WAN IPv6 subnet used to deploy for a WAN link, ISP might provide an extra LAN IPv6 subnet for deploying your LAN. Depending on the demand, the LAN IPv6 subnet can be deployed as basic subnet in DMZ as well for the WAN link.
